Square Flat Burner Pan Kit - Battery Ignition Kit

18" Square Flat Burner Pan with Opening for Pilot Burner

• 6" Diameter Fire Ring - 43K BTU's (304 Stainless Steel)
• 1/2 Gas Inlet with NG Orifice or LP Air Mixer

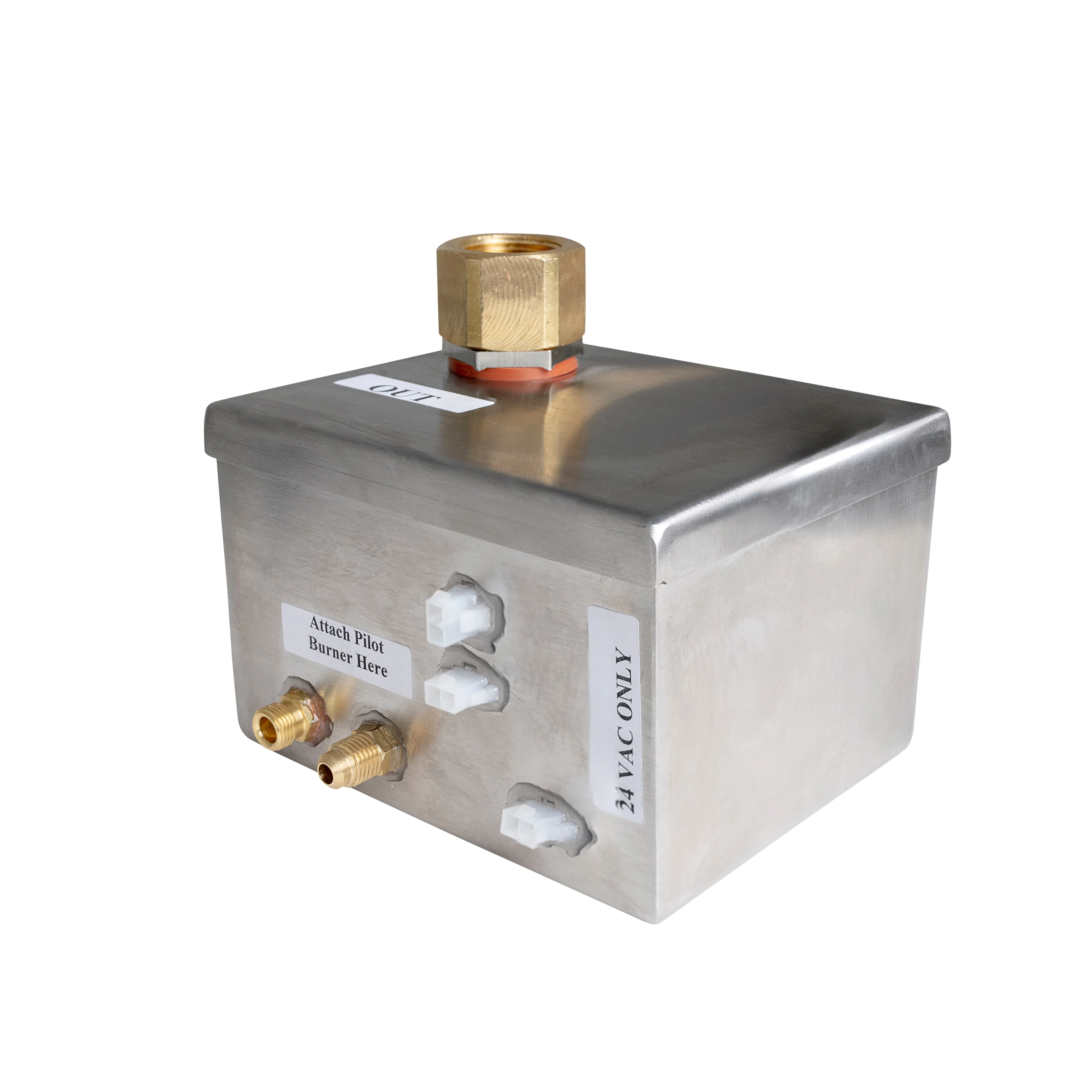

• Battery Powered Ignition System Kit
• Natural Gas or Liquid Propane
• Includes (1) 18" Whisper Free Flex Gas Line 1/2"
• Note: Holds 29lbs of Fire Glass / 2 Bags of Lava Rock / 1 Bag of Rolled Lava Stone


24" Square Flat Burner Pan with Opening for Pilot Burner

• 12" Diameter Fire Ring - 85K BTU's (304 Stainless Steel)
• 1/2 Gas Inlet with NG Orifice or LP Air Mixer
• Battery Powered Ignition System Kit
• Natural Gas or Liquid Propane
• Includes (1) 18" Whisper Free Flex Gas Line 1/2"
• Note: Holds 52lbs of Fire Glass / 3 Bags of Lava Rock / 1 Bag of Rolled Lava Stone.


30" Square Flat Burner Pan with Opening for Pilot Burner

• 18" Diameter Fire Ring - 162K BTU's (304 Stainless Steel)
• 1/2 Gas Inlet with NG Orifice or LP Air Mixer
• Battery Powered Ignition System Kit
• Natural Gas or Liquid Propane
• Includes (1) 18" Whisper Free Flex Gas Line 1/2"
• Note: Holds 81lbs of Fire Glass / 5 Bags of Lava Rock / 2 Bag of Rolled Lava Stone.


36" Square Flat Burner Pan with Opening for Pilot Burner

• 24" Diameter Fire Ring - 170K BTU's (304 Stainless Steel)
• 1/2 Gas Inlet with NG Orifice or LP Air Mixer
• Battery Powered Ignition System Kit
• Natural Gas or Liquid Propane
• Includes (1) 24" Flex Line 3/4" with 1/2" x 3/4" Reducer.
• Note: Holds 117lbs of Fire Glass / 6 Bags of Lava Rock / 2 Bag of Rolled Lava Stone.


48" Square  Flat Burner Pan with Opening for Pilot Burner

• 36" Diameter Fire Ring - 238K BTU's (304 Stainless Steel)
• 3/4 Gas Inlet with NG Orifice or LP Air Mixer
• Battery Powered Ignition System Kit
• Natural Gas or Liquid Propane
• Includes (1) 36" Flex Line 3/4" - 3/4 x 1/2 SS Hex Reduce
• Note: Holds 208lbs of Fire Glass / 11 Bags of Lava Rock / 4 Bag of Rolled Lava Stone.
